Description

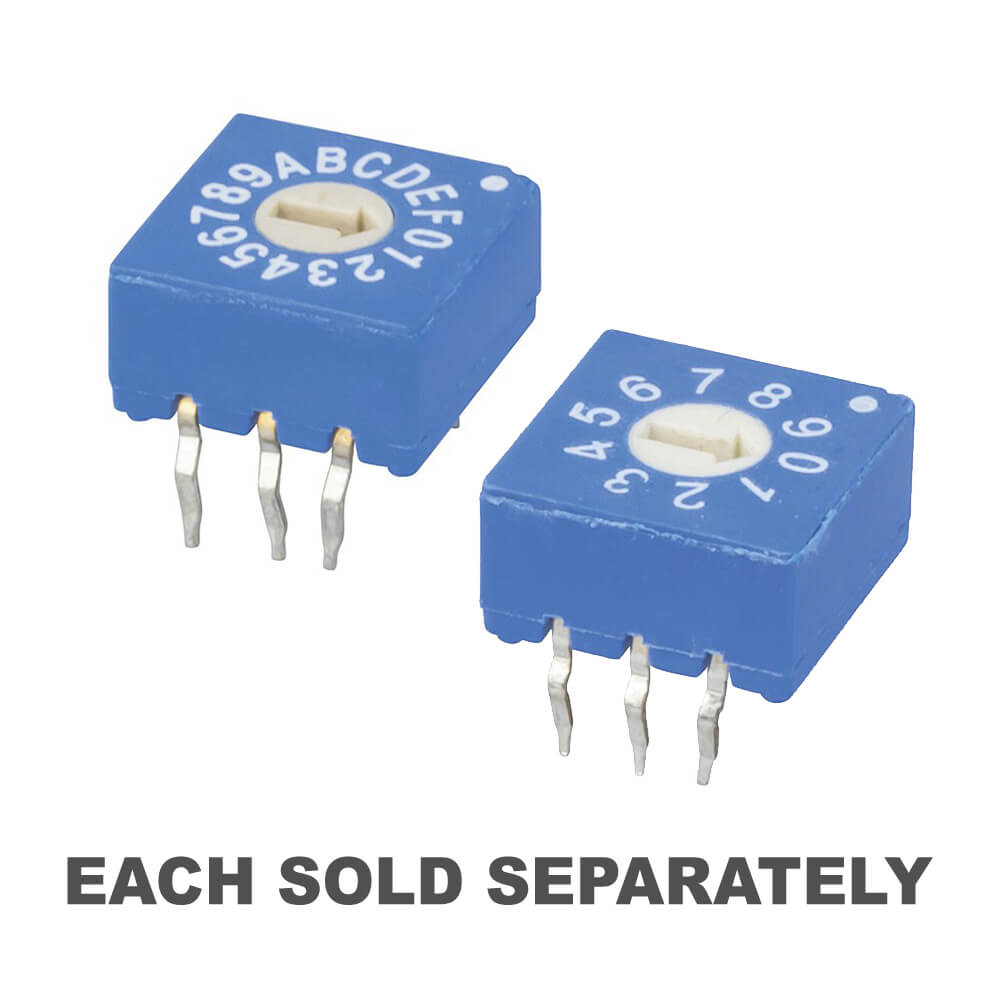

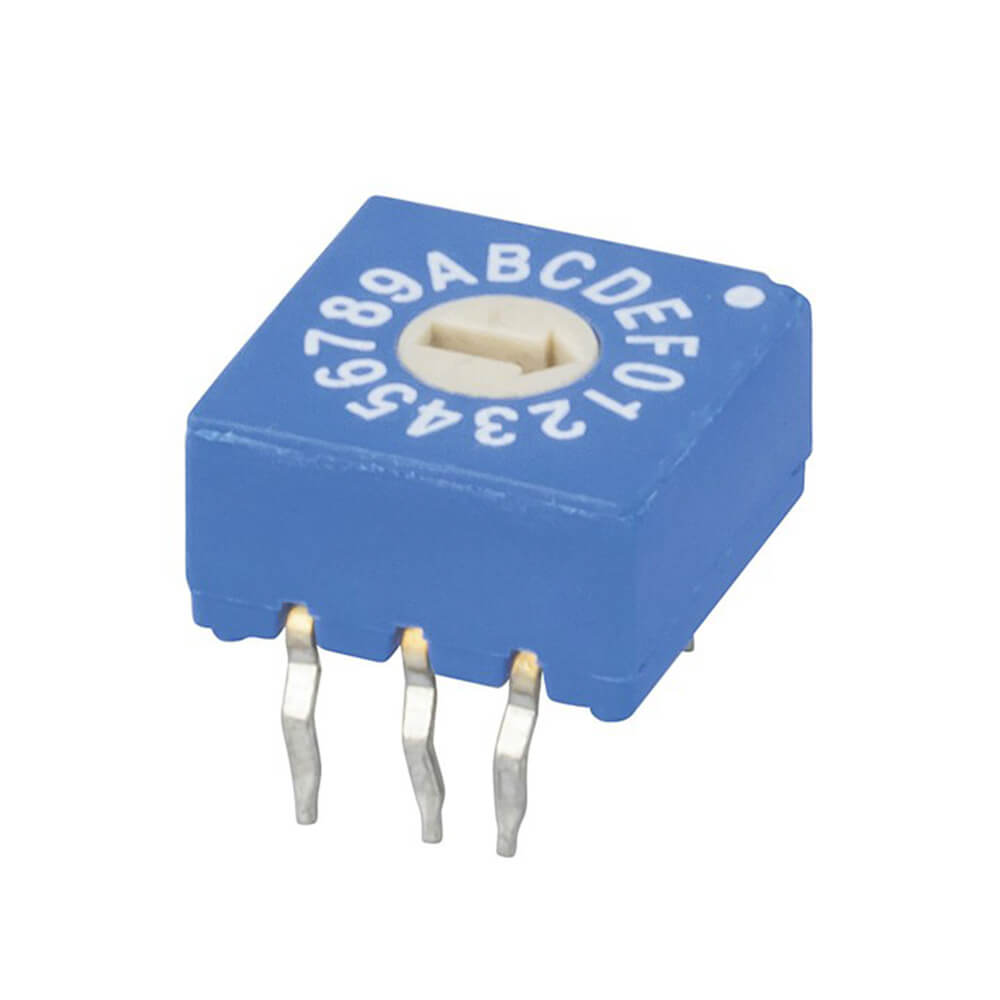

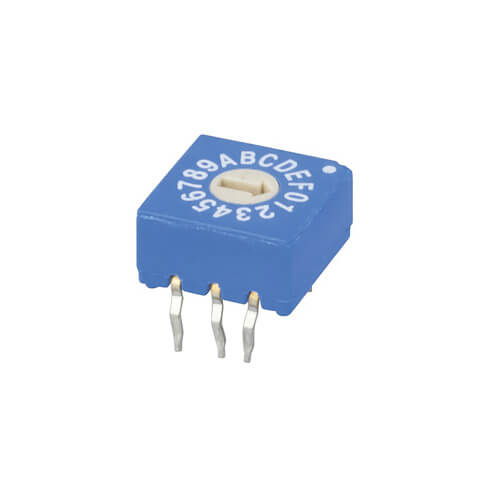

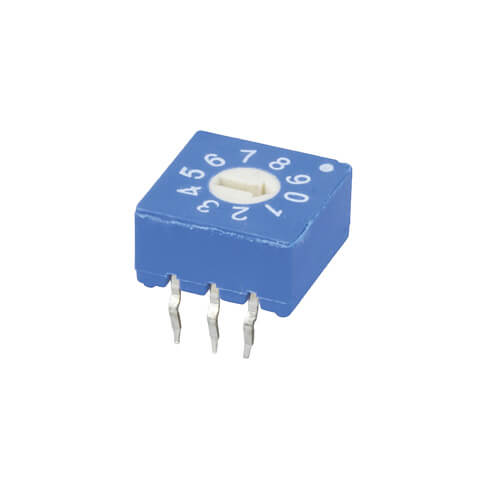

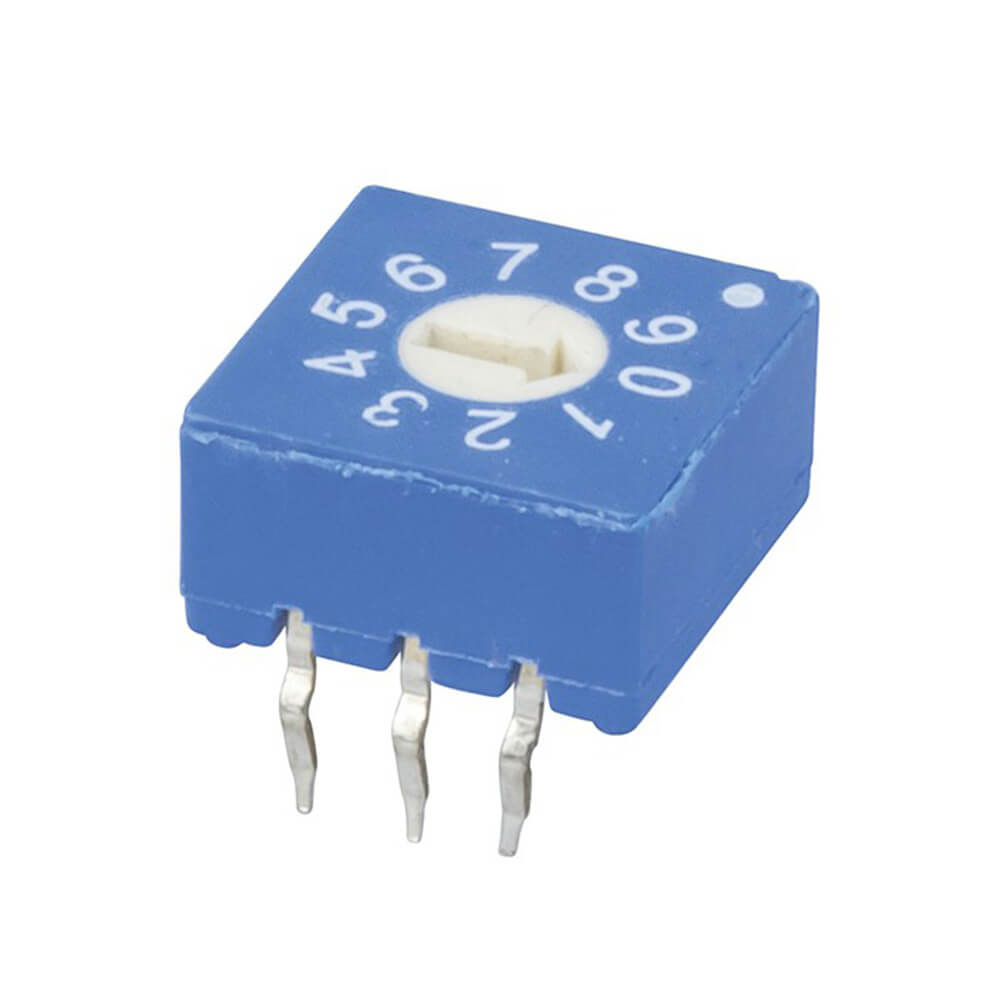

These tiny switches are designed for PCB use. These pins are moulded in and fully sealed. The body is moulded in UL 94V-0 flame retardant plastic.
Specifications:
DC current rating : 25A
DC Voltage : 24V
Operating Temperature : 70DegC
Length : 10mm
Width : 10mm
Height : 5mm
Mounting Method : PCB
Attachment / Securing Method : Snap-in
Packaged Volume : 0.01l
Packaged Weight : 0kg
Packaged Length : 3.5cm
Packaged Width : 2.2cm
Packaged Height : 0.8cm
Switch Type : RotaryDIL
Throws / Positions : 16pos
Cycle Life : 20000 cycles
Contact Resistance : 100mΩ
Insulation Resistance : 1000MΩ
Dielectric Strength : 250V
Product Specifications
- Contact rating: Switching: 25mA@24VDC
- Non Switching: 100mA@50VDC
- Rotational Torque Required: 500gf-cm
- Vibration: Per MIL-STD-202F Method 204D
- Solderability After flux: 230 +/-5DegC for 5 +/- 0.5 sec- 0 through F output
| Length : 3.5 cm | Width : 2.2 cm |
| Height : 0.8 cm |
