Description

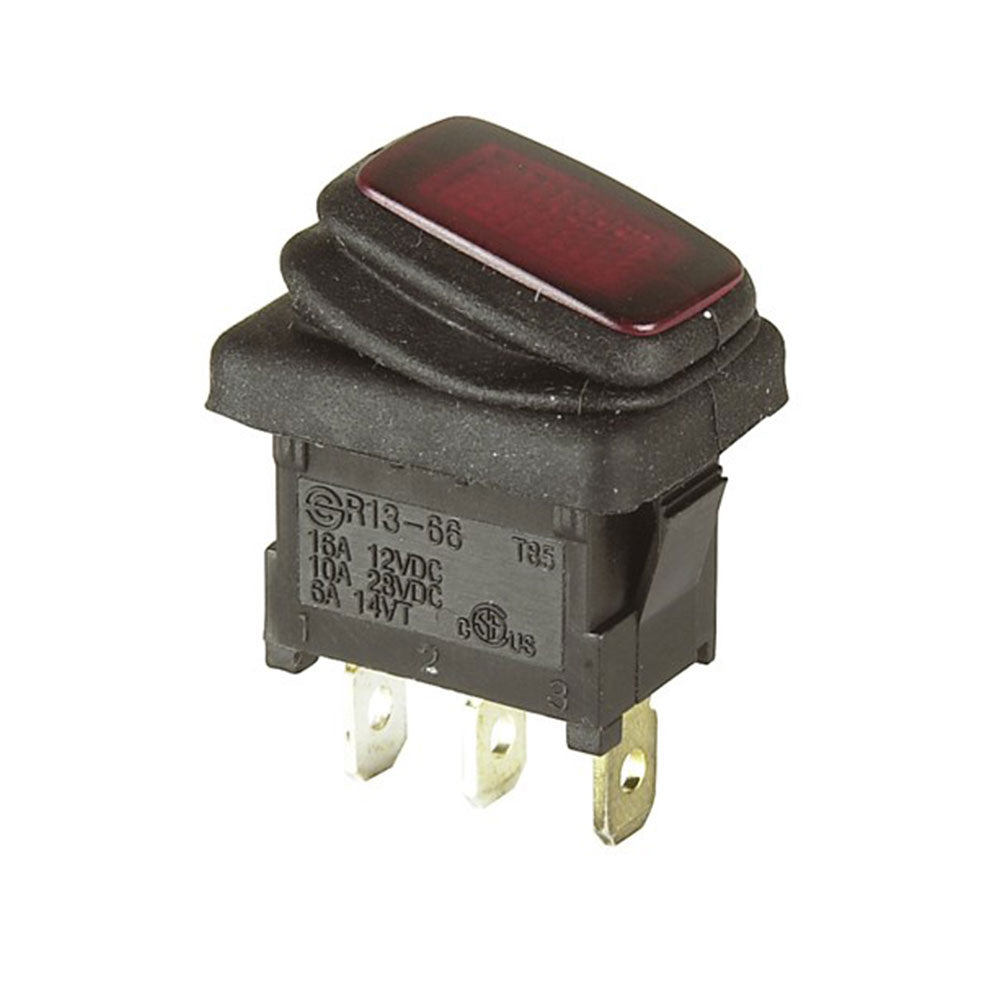

SPST mini rocker switches with spade QC lugs. Sealed with a rubber boot and IP56 rated.
Cutout: 18.8 x 12.5mm
Product Specifications
- Mounting Method : Panel
- Square Mount Hole Width : 12mm
- Square Mount Hole Height : 19mm
- Attachment / Securing Method : Snap-in
- Dust/Particle Ingress Protection : 5 - Dust protected, protected but some dust may enter
- Liquid/Moisture Ingress Protection : 6 - Powerful water jets
- DC Voltage : 12V
- DC current rating : 16A
- Switch Type : Rocker
- Poles / Contacts : 1 pole
- Throws / Positions : 1pos
- Switch Function : Locking On/Off
- Contact Resistance : 50Ω
- Insulation Resistance : 100MΩ
- Dielectric Strength : 1000V
- Mechanism Material : Plastic
- Switch Connection : Spade Terminals
- Switch Colour Coded : Black
- Pole Throw Type : SPST
- Illumination Colour : Red
- Nominal Voltage : 12V
- Connection : Spade Terminals
- Type : 5mm Standard LED
| Length : 11.9 cm | Width : 4.3 cm |
| Height : 1.9 cm |
