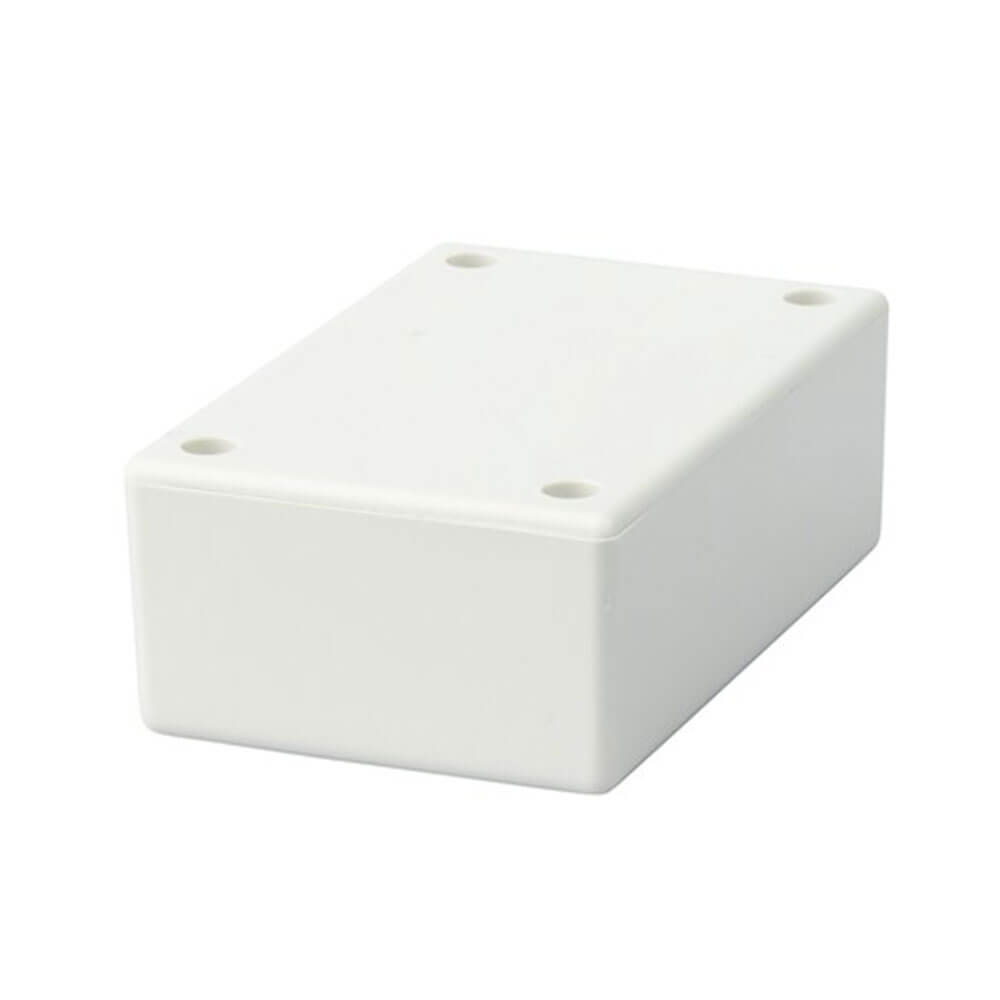

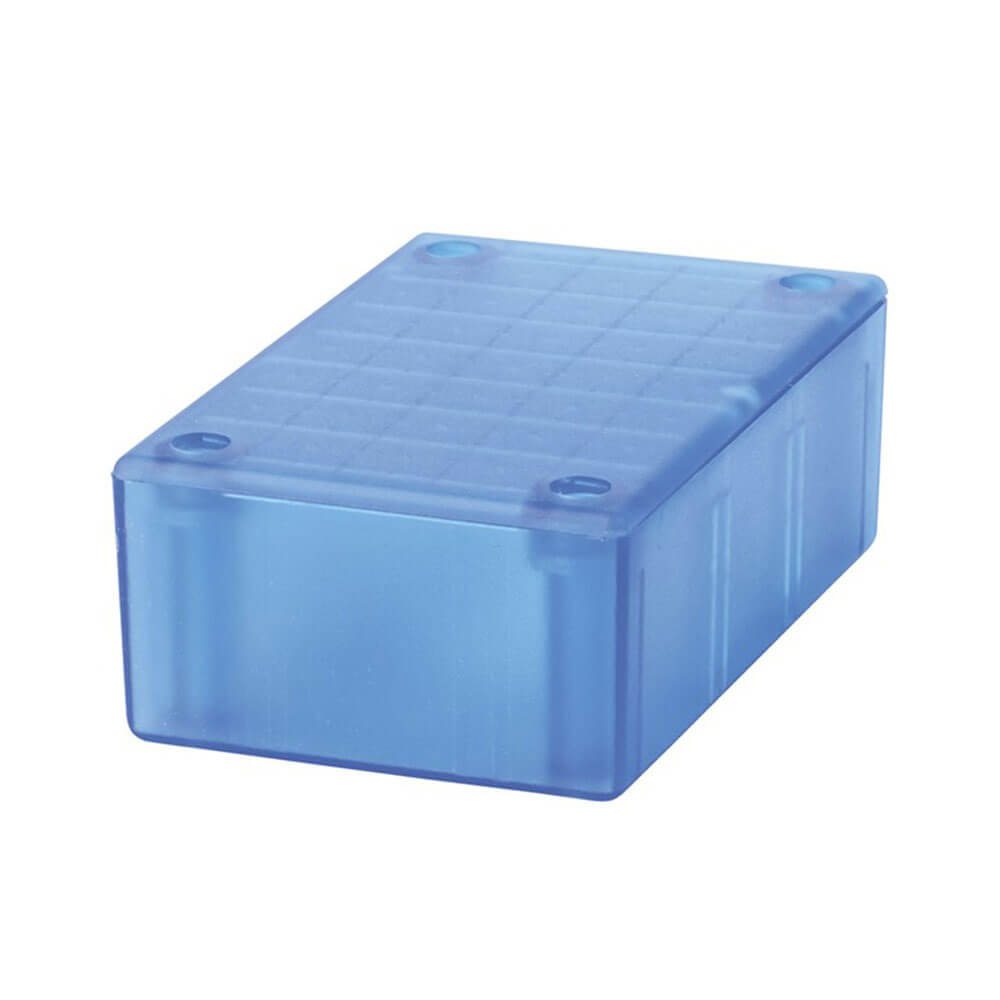

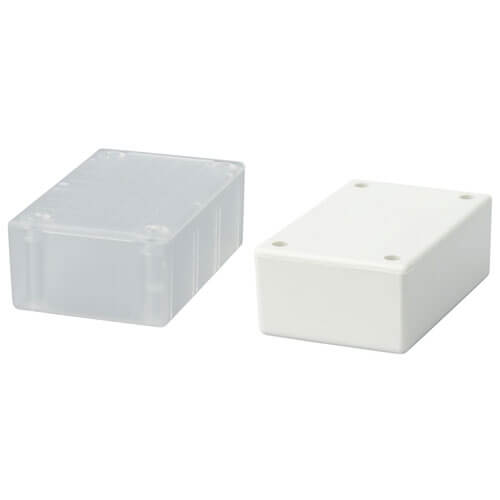

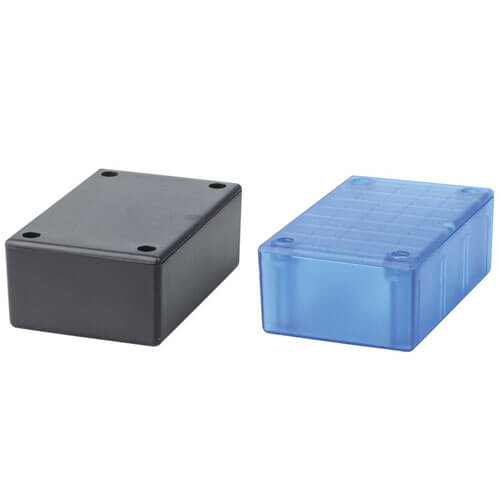

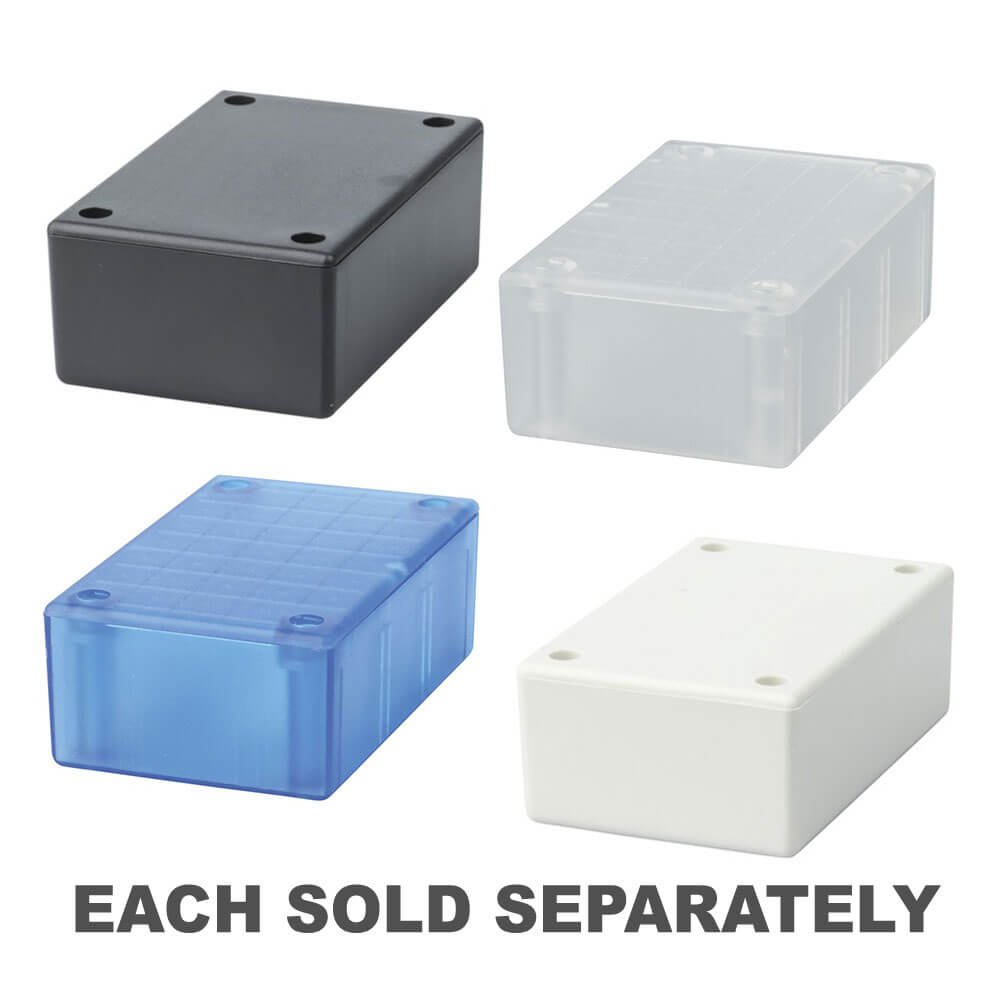

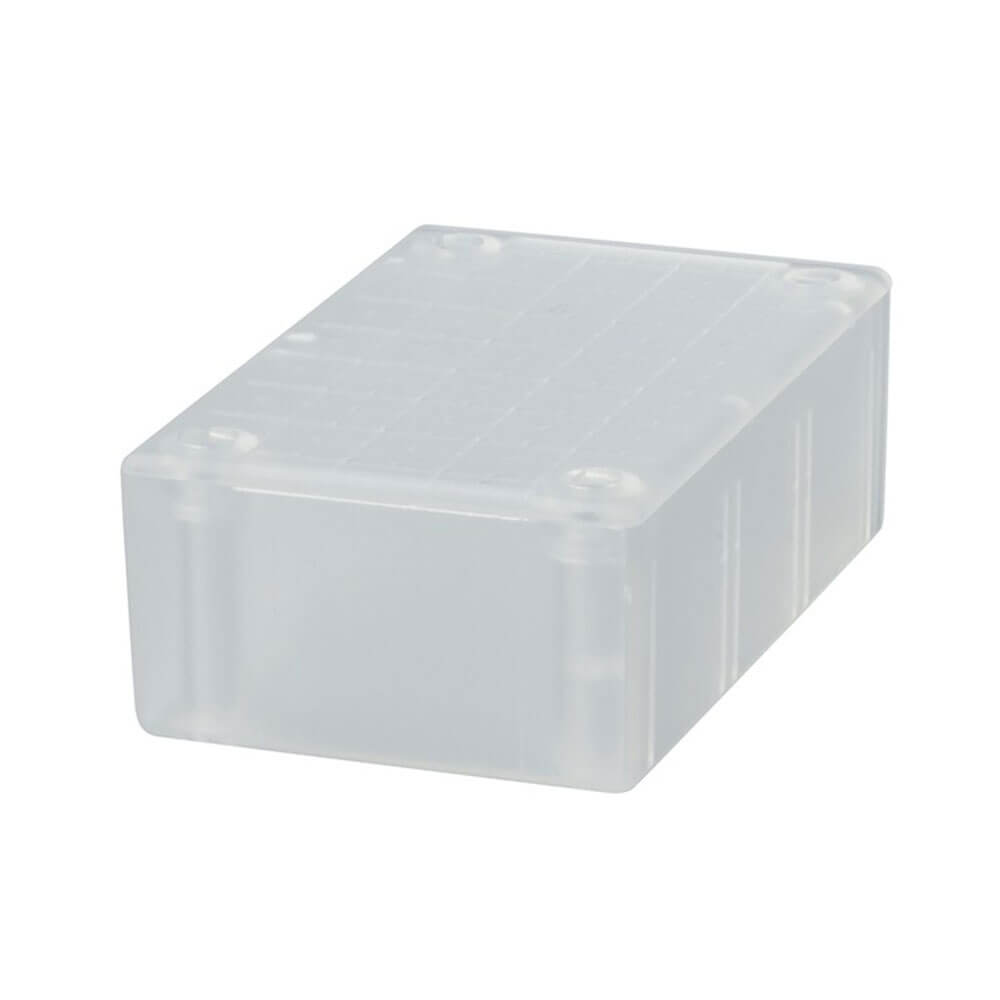

Jiffy Box (83x54x31mm)

JaycarSKU: 125959

BUY MORE SAVE MORE!

BUY 2	GET 2% OFF
BUY 3	GET 4% OFF
..........	..........
BUY 6	GET 10% OFF

Impervious, dimple-free finish provides good adhesion for screen printing
Lids feature a 5mm grid of 'centre punch' type points on the underside for quick, easy and accurate drilling
Lids also feature a 10mm grid of scribed lines providing an easy and precise guide for cutting or filing cut-outs
PCB guides in the sides of the box have snap-in locators. Eliminates the need for stand-off hardware when mounting boards horizontally
Box also has a grid of 'centre punch' type points on the base of the inside
Supplied with lid fixing screws
To fit PCB (mm) Vertical 50 x 27mm
To fit PCB (mm) Horizontal 62 x 49mm

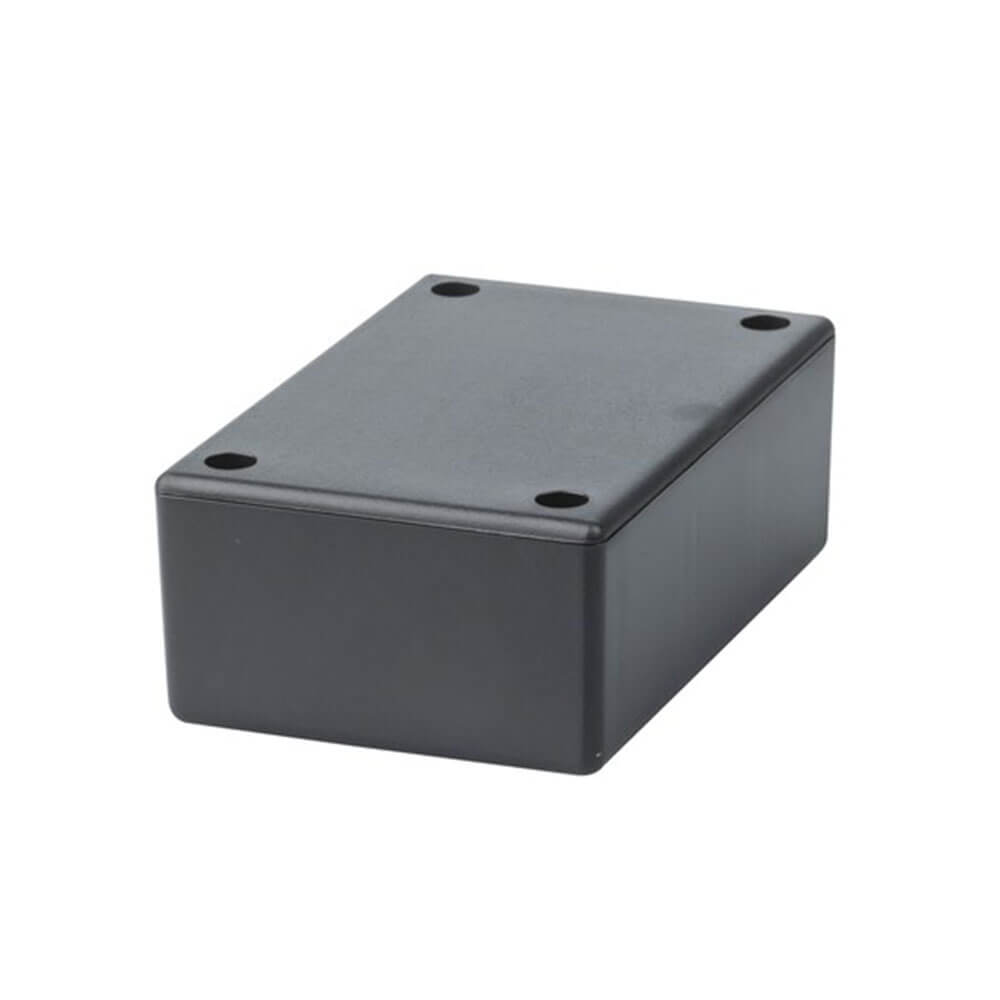

Option: Black

Variant

Price:

$23.95

Stock:

In stock

Quantity:

Share this product

Manufactured from ABS plastic, these jiffy boxes not only look great, they have been designed to incorporate everything our customers wanted in a constructor's box. Sizes are compliant with industry standards externally and PCB fitting internally.

Product Specifications

Impervious, dimple-free finish provides good adhesion for screen printing
Lids feature a 5mm grid of 'centre punch' type points on the underside for quick, easy and accurate drilling
Lids also feature a 10mm grid of scribed lines providing an easy and precise guide for cutting or filing cut-outs
PCB guides in the sides of the box have snap-in locators. Eliminates the need for stand-off hardware when mounting boards horizontally
Box also has a grid of 'centre punch' type points on the base of the inside
Supplied with lid fixing screws
To fit PCB (mm) Vertical 50 x 27mm
To fit PCB (mm) Horizontal 62 x 49mm
