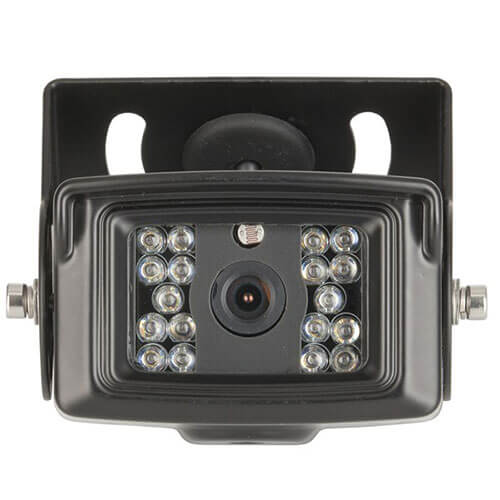

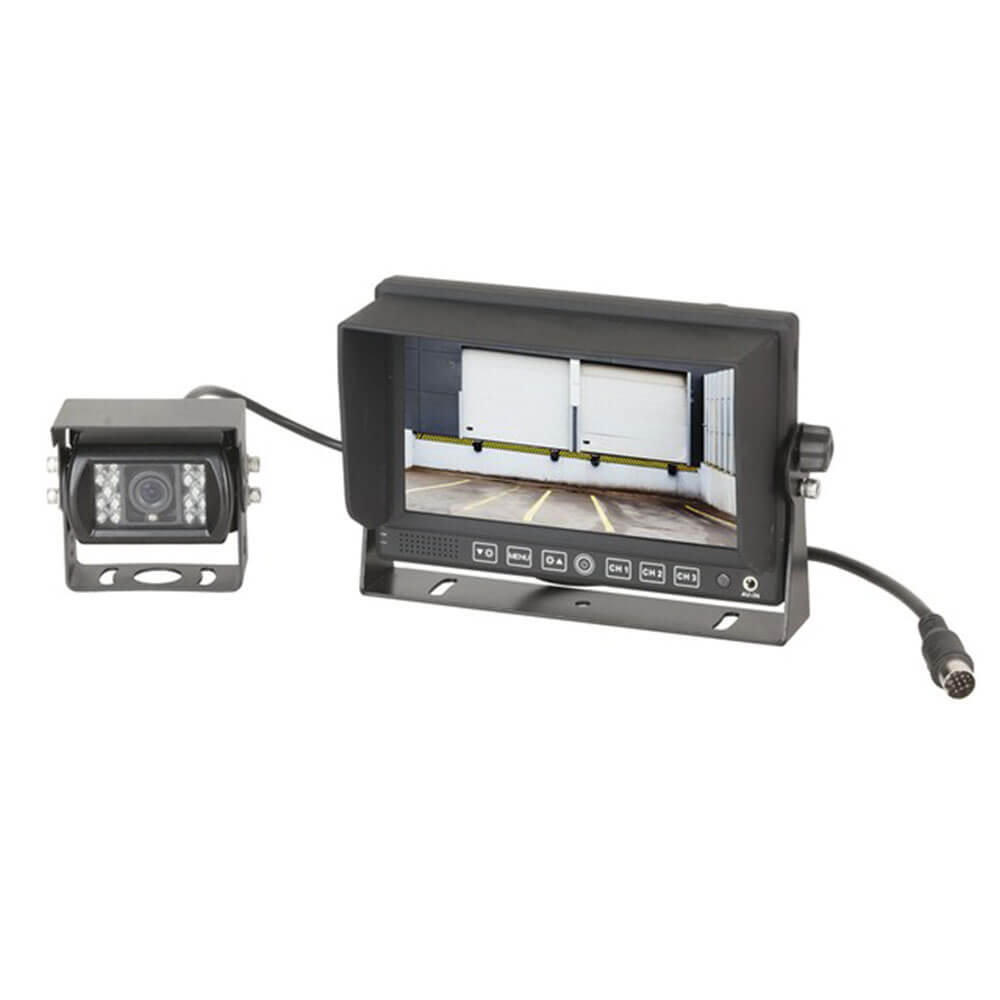

This unit enables you to monitor the area to the rear of a bus, truck, caravan, RV etc, view a much wider field-of-view than any rear view mirror array and works in the dark with IR lighting. The system comes with a 7" (diagonal) LED display that has two video inputs, so you could (for example) have another camera monitoring, say bus passengers (camera extra). The rear vision camera is fitted with a SHARP (Japan) CCD device with 18 x IR LED's for night vision illumination. The housing of the camera is metal, IP65 and has a gymbal bracket. It can be mounted externally. The kit is supplied with 5m of preterminated connecting cable. A remote control for the monitor is also provided.
In keeping with the professional status of the product, it will work from 12 or 24VDC.
Product Specifications
- General Type : rearview camera
- Cameras Included : 1.0pc
- Bulit-in IR LEDs : true
- Number of IR LEDs : 18.0pc
- Screen Type : Flat Panel Screen (LCD)
- Screen Backlit : LED Backlit
- Screen Resolution Standard : 720p (1280 x 720)
- Diagonal Screen Size : 7.0in
- Aspect Ratio : 16:9
- Screen Brightness : 250.0cd/m²
- IP Rating : IP65
- Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection : 5 - Water jets
- Width : 178.0mm
- Height : 120.0mm
- Depth : 28.0mm
- Removable : Bolt on/off
- Dimension for : Camera
- Width : 74.0mm
- Height : 48.0mm
- Depth : 65.0mm
| Length : 41.5 cm |
Width : 25.5 cm |
| Height : 9 cm |
