Description

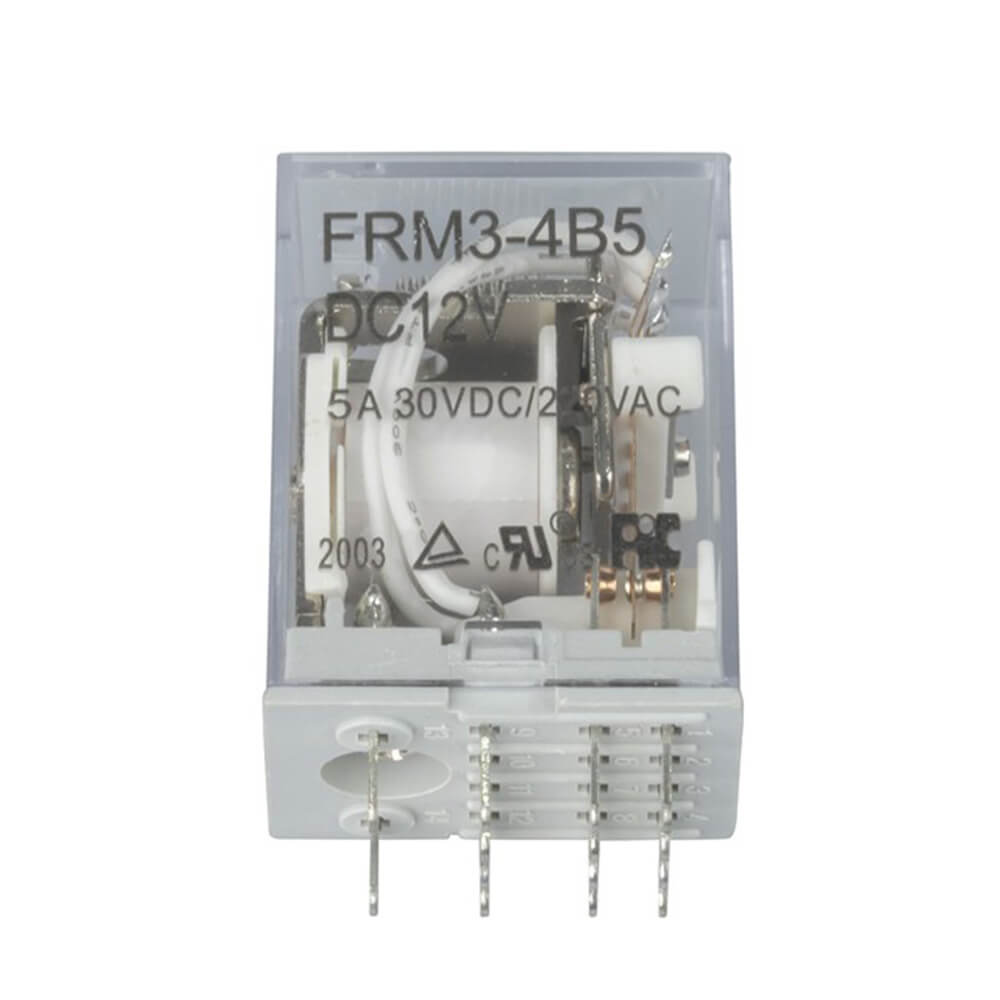

Versatile 4PDT relay suitable for switching loads up to 5A. Designed to suit the SY-4004 DIN rail mounting cradle. Can also be installed with direct connection using mini spade lugs.
Product Specifications
- Length : 28mm
- Width : 22mm
- Height : 35.5mm
- DC Voltage : 12V
- DC Current Draw : 67mA
- Mounting Method : Cradle/Socket Mount
- Packaged Volume : 0.02l
- Packaged Weight : 0.04kg
- Packaged Length : 2.6cm
- Packaged Width : 2.1cm
- Packaged Height : 4.1cm
- Device Type : Cradle Mounting Relay
- Input : DC
- Contact format : 4PDT
- Nominal Voltage : 12V
- Coil Resistance : 180Ω
- Coil Current : 67mA
- AC Contact Voltage : 240V
- AC Switching Current (Closing) : 5A
- DC Contact Voltage : 30V
- DC Switching Current (Opening) : 5A
| Length : 2.6 cm | Width : 2.1 cm |
| Height : 4.1 cm |
